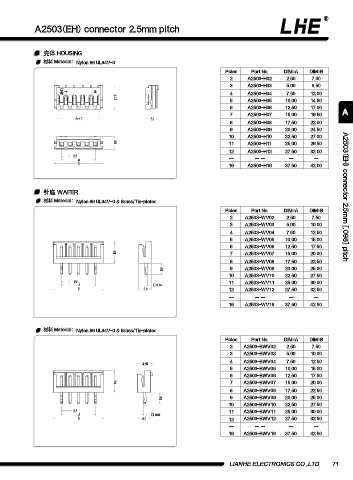

A2503(EH) connector 2.5mm pitch

壳体 HOUSING
质料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A2503-H02 2.50 7.00
3 A2503-H03 5.00 9.50
4 A2503-H04 7.50 12.00
7.15 5 A2503-H05 10.00 14.50
6 A2503-H06 12.50 17.00
7 A2503-H07 15.00 19.50 A
B-1.7 3.5
8 A2503-H08 17.50 22.00
9 A2503-H09 20.00 24.50
10 A2503-H10 22.50 27.00
3.8 11 A2503-H11 25.00 29.50
12 A2503-H12 27.50 32.00
2.5
A -- -- -- -- --
B 16 A2503-H16 37.50 42.00

针座 WAFER
质料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2503(EH) connector 2.5mm [.098] pitch
Poles Part No. DIM=A DIM=B
2 A2503-WV02 2.50 7.50
3 A2503-WV03 5.00 10.00
4 A2503-WV04 7.50 12.50
5 A2503-WV05 10.00 15.00
6 A2503-WV06 12.50 17.50
6.4 7 A2503-WV07 15.00 20.00
8 A2503-WV08 17.50 22.50
3.4 9 A2503-WV09 20.00 25.00
10 A2503-WV10 22.50 27.50
2.5 11 A2503-WV11 25.00 30.00
A o 0.64
B 3.9 12 A2503-WV12 27.50 32.50
-- -- -- -- --
16 A2503-WV16 37.50 42.50

质料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A2503-BWV02 2.50 7.50
3 A2503-BWV03 5.00 10.00
4 A2503-BWV04 7.50 12.50
4.65
5 A2503-BWV05 10.00 15.00
6 A2503-BWV06 12.50 17.50
6.4 7 A2503-BWV07 15.00 20.00
8 A2503-BWV08 17.50 22.50
3.4 9 A2503-BWV09 20.00 25.00
10 A2503-BWV10 22.50 27.50
2.5 11 A2503-BWV11 25.00 30.00
A o 0.64
B 3.9 12 A2503-BWV12 27.50 32.50
-- -- -- -- --
16 A2503-BWV16 37.50 42.50

LIANHE ELECTRONICS CO.,LTD. 71
