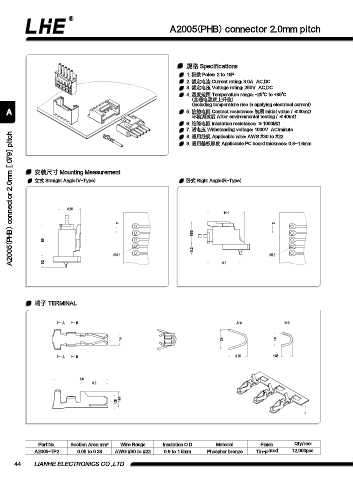

A2005(PHB) connector 2.0mm pitch
规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度规模 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤30mΩ
情形测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2005(PHB) connector 2.0mm [.079] pitch
8. 适用线规 Applicable wire: AWG #30 to #22
9. 适用基板厚度 Applicable PC board thickness: 0.8~1.6mm
装置尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)
6.65
11.1
2 2
6.65
9.6
3.2
n0.8 n0.8
3.2 9.8
端子 TERMINAL
A B A-A B-B
1.4 2.4 1.6
A B 2.15 1.35
6.5
3.3
1.25 1.85
Part No. Section Area mm? Wire Range Insulation O.D Material Finish Qty/reel
A2005-TP2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs
44 LIANHE ELECTRONICS CO.,LTD.
