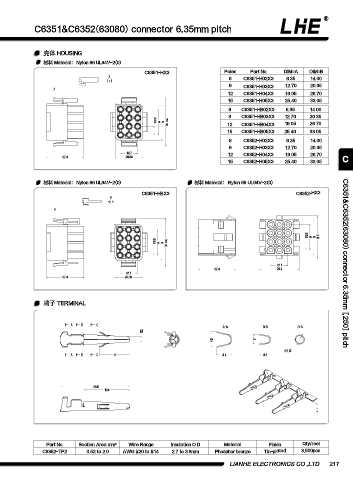

C6351&C6352(63080) connector 6.35mm pitch

壳体 HOUSING
质料 Material：Nylon 66 UL94V-2(0)
C6351-HX3 Poles Part No. DIM=A DIM=B
Z
1 : 1 6 C6351-H02X3 6.35 14.00
9 C6351-H03X3 12.70 20.35
Z
12 C6351-H04X3 19.05 26.70
15 C6351-H05X3 25.40 33.05
6 C6351-HB02X3 6.35 14.00
9 C6351-HB03X3 12.70 20.35
6.35 A B B+9.4 12 C6351-HB04X3 19.05 26.70
15 C6351-HB05X3 25.40 33.05
6 C6352-H02X3 6.35 14.00
9 C6352-H03X3 12.70 20.35
12.7 12 C6352-H04X3 19.05 26.70
27.4 20.36 C
15 C6352-H05X3 25.40 33.05

质料 Material：Nylon 66 UL94V-2(0) 质料 Material：Nylon 66 UL94V-2(0)
C6351-HBX3 C6352-HX3
Y
1 : 1
Y

6.35 A B B+5
6.35 A B B+9.4

12.7 C6351&C6352(63080) connector 6.35mm [.250] pitch
27.4 29.4
12.7
27.4 20.36

端子 TERMINAL

A B C
A-A B-B C-C
2
?
4.5 3
n2.75
A B C 9 4.4 3.3

20.5
13.6

Part No. Section Area mm? Wire Range Insulation O.D Material Finish Qty/reel
C6352-TP2 0.52 to 2.0 AWG #20 to #14 2.7 to 3.8mm Phosphor bronze Tin-plated 3,500pcs
