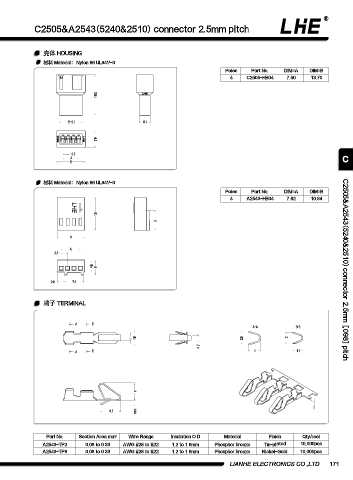

C2505&A2543(5240&2510) connector 2.5mm pitch

壳体 HOUSING
质料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
4 C2505-HB04 7.50 13.70

19.2

B-2.8 5.1

7.9

2.5
A C
B

质料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 A2543-HB04 7.62 10.84

13
8

B
A
2.5

4.8 6 C2505&A2543(5240&2510) connector 2.5mm [.098] pitch

2.9 7.6

端子 TERMINAL

A B
A-A B-B
1.9 2.3 2
1
0.7
A B 2 1.7

3

3.5 0.65

Part No. Section Area mm? Wire Range Insulation O.D Material Finish Qty/reel
A2543-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs
A2543-TP8 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Nickel-Gold 10,000pcs

LIANHE ELECTRONICS CO.,LTD. 171
