P. 136

}

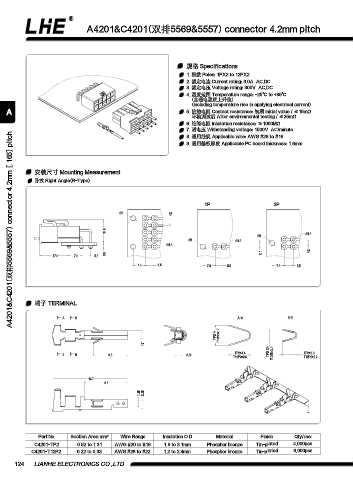

                              A4201&C4201(双排5569&5557) connector 4.2mm pitch






                                                                规格 Specifications
                                                                1. 极数 Poles: 1PX2 to 12PX2
                                                                2. 额定电流 Current rating: 9.0A  AC,DC
                                                                3. 额定电压 Voltage rating: 300V  AC,DC
                                                                4. 温度规模 Temperature range: -25℃ to +85℃
                                                                    (含通电温度上升值)
                                                                    (Including temperature rise in applying electrical current)
   A                                                            5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
                                                                    情形测试后 After environmental testing / ≤25mΩ
                                                                6. 绝缘电阻 Insulation resistance: ≥1000MΩ
                                                                7. 耐电压 Withstanding voltage: 1500V  AC/minute
     A4201&C4201(双排5569&5557) connector 4.2mm [.165] pitch
                                                                8. 适用线规 Applicable wire: AWG #28 to #16
                                                                9. 适用基板厚度 Applicable PC board thickness: 1.6mm




             装置尺寸 Mounting Measurement
             卧式 Right Angle(R-Type)


                                                                      1P                     2P
                                         n3                4.2


                                    13.8                                                                n1.8
                                                                                        n3
                                                                n3              n1.8
                                                         n1.8
                                    3.6                                                  2.1             4.2
                  17.3    7.3   5.5
                                               7.3    5.5              7.3   5.5              7.3    5.5





             端子 TERMINAL

                      A   B                                                      A-A              B-B


                                                                         4
                                                                         TP2=  T12P2=2.7
                                                 1.7
                      A   B          6.8                       0.82             TP2= 4.4   TP2=2.4  T12P2=2.1  TP2= 2.9
                                                                               T12P2=2.6               T12P2=2.2


                              14.7
                                    8.6
                                                1.65  2.05







              Part No.   Section Area mm?  Wire Range   Insulation O.D    Material       Finish     Qty/reel
            C4201-TP2      0.52 to 1.31  AWG #20 to #16  1.9 to 3.1mm  Phosphor bronze  Tin-plated  4,000pcs
           C4201-T12P2     0.22 to 0.33  AWG #28 to #22  1.2 to 2.4mm  Phosphor bronze  Tin-plated  9,000pcs

      124   LIANHE ELECTRONICS CO.,LTD.
