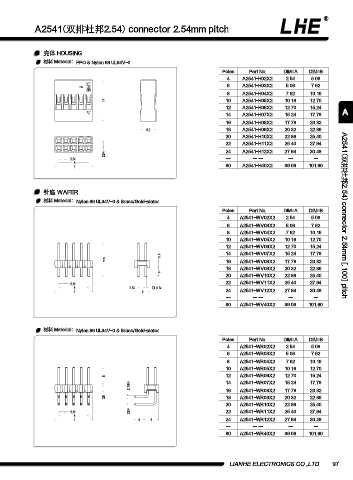

A2541(双排杜邦2.54) connector 2.54mm pitch

壳体 HOUSING
质料 Material：PPO & Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 A2541-H02X2 2.54 5.08
6 A2541-H03X2 5.08 7.62
8 A2541-H04X2 7.62 10.16
14 10 A2541-H05X2 10.16 12.70
12 A2541-H06X2 12.70 15.24
14 A2541-H07X2 15.24 17.78 A
16 A2541-H08X2 17.78 20.32
5.2 18 A2541-H09X2 20.32 22.86
20 A2541-H10X2 22.86 25.40
22 A2541-H11X2 25.40 27.94
24 A2541-H12X2 27.94 30.48
2.54
2.54 -- -- -- -- --
A
B 80 A2541-H40X2 99.06 101.60

针座 WAFER
质料 Material：Nylon 66 UL94V-0 & Brass/Gold-plated
Poles Part No. DIM=A DIM=B
4 A2541-WV02X2 2.54 5.08 A2541(双排杜邦2.54) connector 2.54mm [.100] pitch
6 A2541-WV03X2 5.08 7.62
8 A2541-WV04X2 7.62 10.16
10 A2541-WV05X2 10.16 12.70
12 A2541-WV06X2 12.70 15.24
14 A2541-WV07X2 15.24 17.78
2.5
11.5 16 A2541-WV08X2 17.78 20.32
18 A2541-WV09X2 20.32 22.86
3
20 A2541-WV10X2 22.86 25.40
22 A2541-WV11X2 25.40 27.94
2.54
A 2.54 o 0.64
B 5 24 A2541-WV12X2 27.94 30.48
-- -- -- -- --
80 A2541-WV40X2 99.06 101.60

质料 Material：Nylon 66 UL94V-0 & Brass/Gold-plated
Poles Part No. DIM=A DIM=B
4 A2541-WR02X2 2.54 5.08
6 A2541-WR03X2 5.08 7.62
8 A2541-WR04X2 7.62 10.16
10 A2541-WR05X2 10.16 12.70
12 A2541-WR06X2 12.70 15.24
6
0.64 14 A2541-WR07X2 15.24 17.78
o 16 A2541-WR08X2 17.78 20.32
2.5 18 A2541-WR09X2 20.32 22.86
20 A2541-WR10X2 22.86 25.40
2.54 2.54 22 A2541-WR11X2 25.40 27.94
A
B 3 5 24 A2541-WR12X2 27.94 30.48
-- -- -- -- --
80 A2541-WR40X2 99.06 101.60

LIANHE ELECTRONICS CO.,LTD. 97
